| Frame | CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c |
| Fork | Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology |
| Headset | Merida Team SL (OP-203 neck) |
| Stem | Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL) |
| Bars | Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL) |
| Front Brake | Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor |
| Rear Brake | Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor |
| Brake Lever | SHIMANO Dura Ace |
| Front Mech | SHIMANO Dura Ace Di2 |
| Rear Mech | Shimano Dura Ace Di2 |
| Shifters | Shimano Dura Ace Di2 |
| Speed | 24 |
| Rims | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 18mm inner rim width; 45 mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 100 x 12mm; Centerlock |
| Rear Hub | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 142 x 12mm; Centerlock |
| Spokes | part of wheelset |
| Front Tyre | Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready |
| Seat Post | Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex |
| Saddle | Scratch M5 with V-mount adapter; includes Merida minitool |
| Chainset | Shimano Dura Ace; 52-36 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
| Bottom Bracket | SM-BB92-41B, Pressfit 86.5 |
| Chain | Shimano CN-M9100-12 |
| Cassette | Shimano CS-R9200; 11-30 teeth; 12 speed |
1
/
of
2
Forge 1860
Merida Scultura Team 2025 Road Bike 56cm Large
Merida Scultura Team 2025 Road Bike 56cm Large
Regular price
£5,998.00 GBP
Regular price
£8,000.00 GBP
Sale price
£5,998.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability

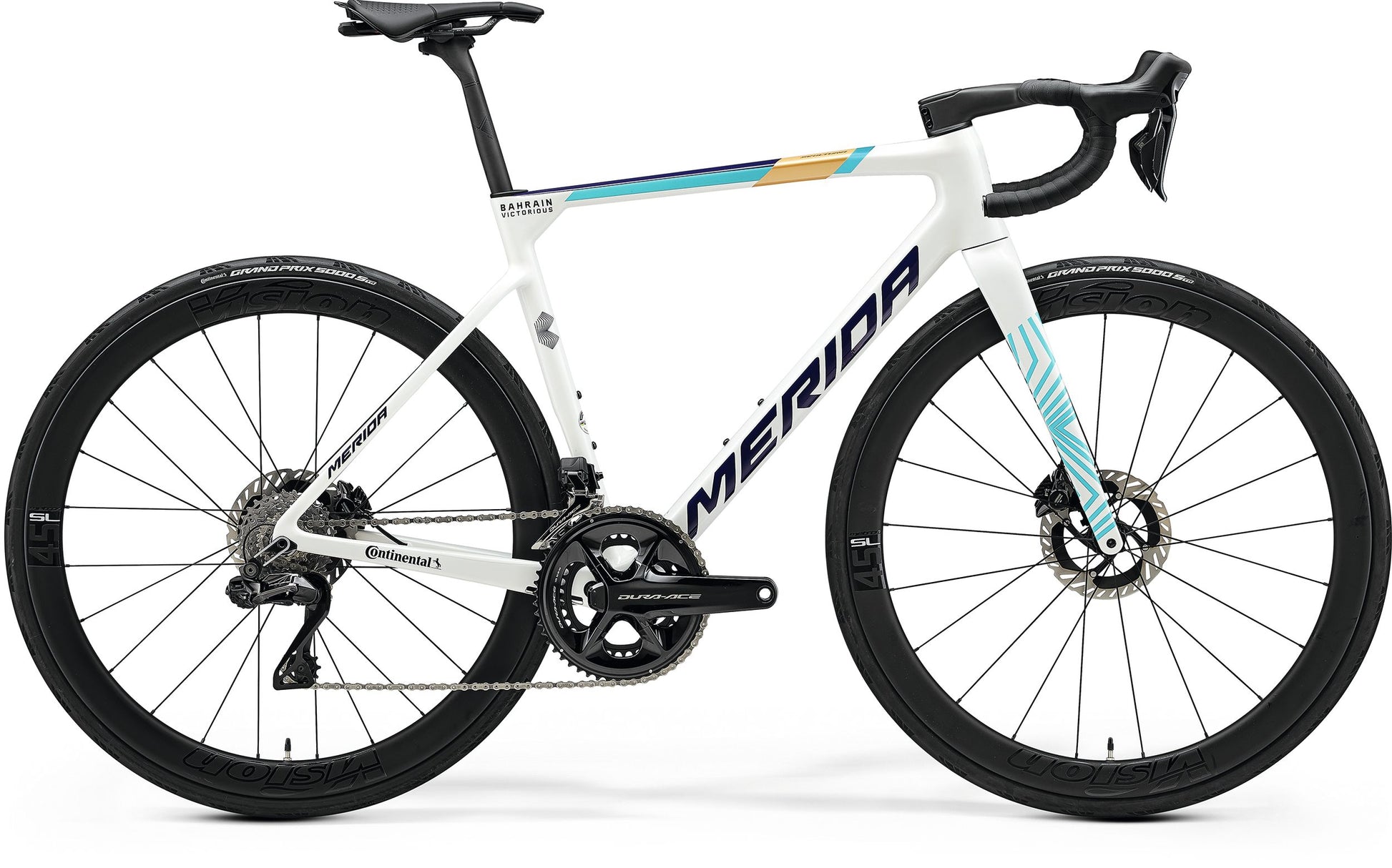

Merida Scultura Team 2025 Road Bike
The Merida Scultura Team delivers elite-level performance with a featherlight carbon frame and race-proven geometry, perfect for climbing, sprinting and all-round road racing.
From the moment you clip in, the Merida Scultura Team makes it clear this is a bike built for racing at the highest level. Ridden to stage wins in the Tour de France and Vuelta a España by Team Bahrain Victorious, this fifth-generation Scultura is faster, lighter, and more compliant than ever before.
Key Features:
- CF5 carbon frame with race geometry, engineered for low weight and rider comfort
- Full carbon fork with tapered steerer for precise steering and weight savings
- Shimano Dura-Ace Di2 12-speed electronic drivetrain for flawless gear changes
- Shimano Dura-Ace hydraulic disc brakes deliver powerful, consistent braking
- Vision Metron 45 SL carbon wheelset with Continental GP5000S TR tyres
- Internal cable routing and aero tube shapes for reduced drag
At its heart is the CF5 carbon frameset, Merida’s most advanced layup, using high-modulus fibres and Advanced Carbon Matrix technology to balance ultra-low weight with impressive strength and stiffness. Despite its climbing pedigree, this frame also incorporates aerodynamic cues from the Reacto aero bike – including integrated cabling and profile shaping – for speed across rolling terrain and into headwinds.
The Shimano Dura-Ace Di2 12-speed drivetrain offers lightning-fast shifting with an ultra-clean cockpit and seamless electronic precision. Paired with Dura-Ace hydraulic disc brakes, you'll have total control whether you’re diving into alpine descents or sprinting on flat-out crit circuits.
Vision Metron 45 SL carbon wheels offer a perfect blend of lightweight construction and aerodynamic depth, making them ideal for mixed-terrain racing. Wrapped in Continental GP5000S TR tyres, you get low rolling resistance, excellent grip and tubeless-ready versatility.
This latest generation Scultura achieves a new benchmark for comfort in a race bike too. Dropped seatstays and wider tyre clearance help smooth out rough tarmac, keeping fatigue at bay for longer efforts and setting you up perfectly for that final attack or climb.
The Merida Scultura Team isn’t just another high-end race bike – it’s a machine tested and proven at cycling’s highest level. For ambitious riders looking for podium-ready performance, it’s a serious contender.
Specification
